Kinetic K5000XMC Combination Drilling and Cutting Machine

Posted on April 9, 2012 by sonja

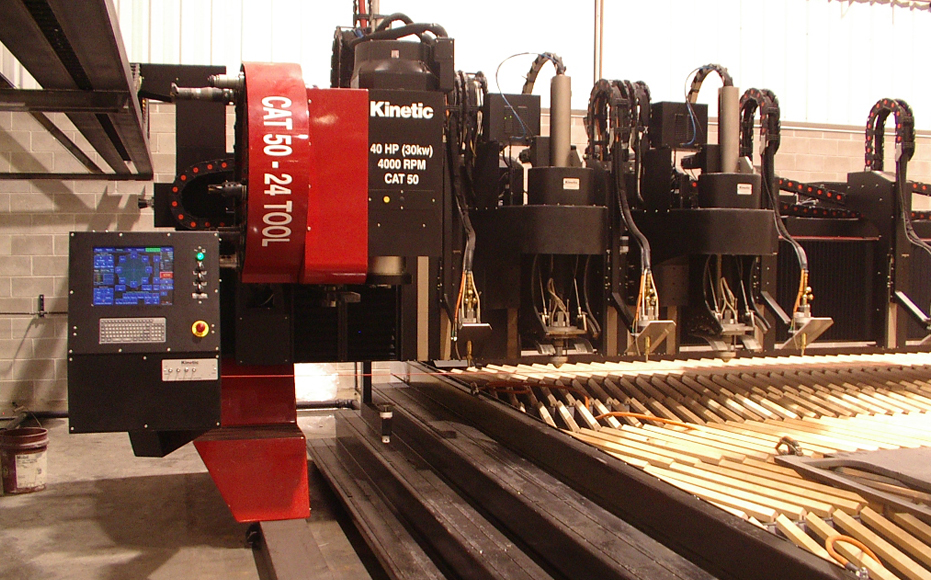

Heavy duty combination machine for doing machining operations and precision plasma or flame cutting. This enables parts to be finished in one set-up with no jigging or work holding devices necessary.

Machine Capabilities

• DRILLING
• MILLING
• TAPPING
• COUNTERBORING
• MARKING
• PLASMA CUTTING
• FLAME CUTTING
• BEVEL CUTTING
• AUTOMATIC TOOL CHANGING

Machine Features

• 48 HP (30kW) High Speed Spindle with a CAT 50 Taper
• Through spindle coolant
• Drilling to 4″
• Boring to 8″
• Tapping to 1 1/4″
• Automated tool changer with 24 tool holders mounted to the main carriage
• Floor mounted rails for long axis with linear bearing guides and full protection
• PC Controlled
• 19” LCD Glass Faced Touch Screen
• Extra heavy duty machine design to accommodate machining forces generated by spindle
• Four lifter stations in addition to the spindle fitted to the carriage to accommodate up to four independent tools
• Machine manufactured from standard components
• Dual Rack and pinion drives for long axis to precision hardened and ground helical rack
• Fiber optic link to office network
• Guiding System Linear bearings on all axes
• Drive AC Servo (dual X)
• Drive System X & Y Rack and Pinion
• Vertical Drives Programmable ball – screw
• Traverse Speed 25 m/min (1000 ipm)
• Machine accuracy +/- 0.15mm/m (0.006″/3′)

Optional Cutting Heads

• Precision Hypertherm plasma torches:
  • HPR800XD
  • HPR400XD
  • HPR260XD
• Plasma bevel cutting
• Oxy fuel bevel cutting
• Multi torch cutting
• Marking systems such as ink jet, plasma marking or powder marking
• Pipe cutting systems for pipe cutting to 2′ or 3′ diameter

Common Sized Include

Cutting Widths	8’8”, 10’8”, 12’8”, 14’8”, 16’8”, 20’8”,	2.6m, 3.4m, 4.3m
Cutting Lengths	20’8” and longer	6.3m and longer
